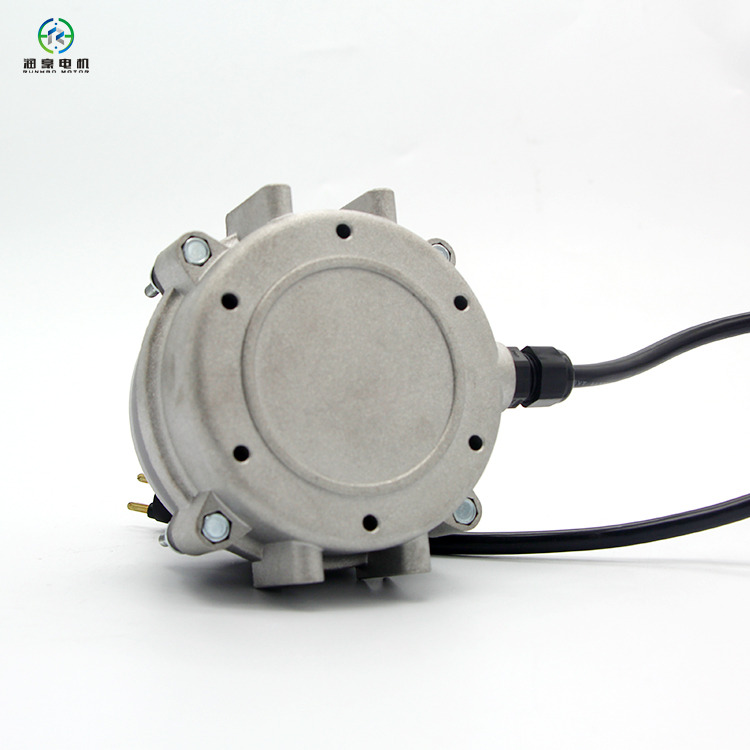

High Speed Brushless DC Fan Electric Motor for Refrigerator
|
Model: |
QSM12-1A-CC |
|
Customer model |
30021-01 |
|
Volts |
115 V |
|
Voltage Range |
95-132 |
|
Running Current (Amps) |
0.15 |
|
Locked Rotor Current (Amps) |
1.5 |
|
Horse Power |
1/62 HP |
|
Watts |
6-12 |
|
RPM |
1800 |
|
Frequency |
60 Hz |
|
Rotation (opposite end of shaft) |
CW |
|
Phase |
1 |
|
Temp |
-40 to +55 C |
|
Protection |
Thermally Protected |
|
CSA / UL File Number |
E465664 |
|
Class |
Class A (105 C) |
|
Motor Type |
Continuous Air Over |
|
Plug |
2 Pin Lyall M-2-24 |
|
Cable Length |
16 Inches long |
|
Cable Rating |
300V, 105C 18/2 CSA |
|
Cable Rating |
300V, 105C 18/2 UL |
|
Shaft diameter |
8mm / .3149 in |
|
Front Mounting Pattern |
95.25mm / 3.75 in |
|
Rear Mounting Pattern |
71.45mm / 2.813 in |
|
Foot Mounting |
8-32 pattern 1.125 x .625 |
|
Fan Mount Screw Size |
8-32 |
|
Moisture Protection |
IP65 |
|
Fan Blade Pitch |
8 In, 25 deg |
|
|
|
|
Efficiency @6W (rated power) |
69% |
|
Power Factor |
0.77 |
|
Amps |
0.096 |
|
Volts |
115 |
|
|
|
|
Efficiency @12W (rated power) |
75% |
|
Power Factor |
0.9 |
|
Amps |
0.15 |
|
Volts |
115 |
